Single Channel 4-20Ma to RS485 /RS232 Converter

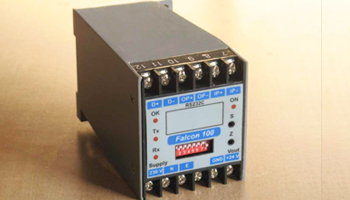

Falcon 100 is a single channel analog input to RS485 / RS232 output module, which is best suitable for SCADA applications. The output is on RS485 / RS232 with Modbus RTU protocol which is a industry standard protocol,Optionally ASCII protocol can be provided. DIN Rail mounting makes it easy to be fitted in panel. It operates on 230 VAC or 110 VAC supply (factory set). DIP switch is provided for ID and baud rate settings.
By using Falcon 100 you can directly connect transmitter to RS485 bus. This saves cost and time for cable laying. Moreover the signal noise problems are completely eliminated as we are transmitting digital signal to control room. Ideal for SCADA applications.
|Input||4- 20 mA DC linear.|
|Supply||230VAC / 110VAC, +0 %, single phase, 50 Hz.|
|Retransmission||4-20 mA true Retransmission Output for indication.|
|Transmitter Power Supply||24 VDC,100 mA power supply is made available for the external transmitter.|
|On line PC connectivity through SERIAL port RS485 / RS232 on MODBUS RTU or ASCII protocol. Serial settings on DIP switch.|
|Cabinet||DIN rail mount, Size: 70 x 60 x 114 mm (HxWxD)|
