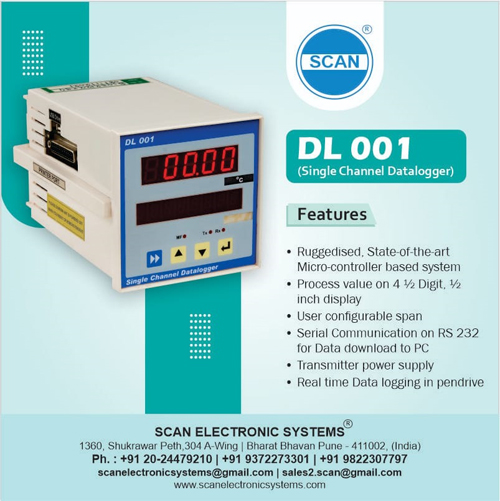

Single channel data logger accepts 4 - 20 mADC linear input, the most commonly used signal in process industry. 7 segment RED LED display makes it visible from long distance. Pendrive(USB) Facility is available optionally . 4GB pen drive can be connected which is equivalent to 100 million readings per channel.. Single channel Data logger also having facility of Option Digital input. Serial port RS232 for downloading data to PC with ASCII protocol. Data Downloading Software with ASCII protocol comes Free with unit.
Technical Specifications | ||
Input | 4- 20 mA DC linear. | |
Display | 7 segment 1/2" LED, 5 digit process value. 8 digit 0.3" display for programming. | |
Supply | 230VAC / 110VAC, +10 %, single phase, 50 Hz | |
Transmitter Power Supply | 24 VDC,100 mA power supply is made available for the external transmitter | |
Serial Communication | SERIAL port RS232 with ASCII protocol. | |
Data logging | Memory capacity of 65280 / 43520(for 4DI option) readings with Real Time Stamping. Logging interval programmable in minutes or seconds from 1 to 240. | |
Printer Port | Centronics compatible parallel printer port for DOT matrix printers only with online / offline printing. | |
Cabinet | Panel mounting ABS moulded cabinet Size - 96 x 96 x 165 mm ( H x W x D ) Cutout - 92 x 92 mm |
