Flow Rate Indicator Totaliser (Totalizer)

Flow Rate Indicator Totalisers, Flow Rate Indicator Totalizer. We are Manufacturer, Exporter, Supplier of these products & our setup is situated in Pune, Maharashtra, India

Models
• FIT- 96X96 with mA/Pulse input
• FIT- 96X48 mA input
• MFM 393
• NHM 393

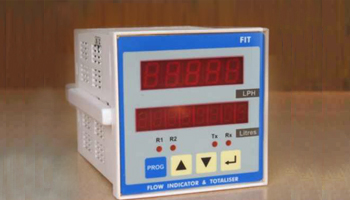

• FIT- 96X96 with mA/Pulse input

Flow rate Indicator Totaliser
Request Quote

Flow Indicator Totalizer model FIT is having Dual functionality flow rate indication / 8 digit flow totalizing and Batch Counter mode with configurable flow rate range. Flow Indicator Totalizer is a panel mounted instrument with multi-functionality viz. Flow Rate indication, Flow Totalizing, batch counter & alarm for instantaneous flow. Flow Indicator Totaliser accepts 4 - 20 mA DC Linear or Pulse or Square root corresponding to flow rate,Factory set. Flow Transmitter can be DPT with orifice assembly, Rotameter, Magnetic Flowmeter etc. with output of 4-20 mA. Flow Indicator Totaliser incorporates two relays, from which one can be used for alarm for instantaneous flow & one for batch counter or both for alarm. There are two relay outputs which operate on flow rate and/or totaliser as per combination selected. Serial connectivity on RS485 port with MODBUS RTU protocol. Flow Indicator Totaliser is used in many applications such as water treatment plants,sawage water treatment plants, effluent water treatment plants,food,chemical plants and water distribution.

• FIT- 96X48 mA input

Flow Rate Indicator
Request Quote

Flow Indicator Totalizer model FIT-4896 is 7 Segment LED display for either 5 - Digit Flow rate or 8 - Digit Totalizer toggled by front key. Flow Indicator Totaliser is a panel mounted instrument with multi-functionality viz. Flow Rate indication, Flow Totalizing, batch counter & alarm for instantaneous flow. Flow Indicator Totaliser accepts mA signal, linear / square root, proportional to flow rate from flow transmitter. Flow Transmitter can be DPT with orifice assembly, Rotameter, Magnetic Flowmeter etc. with output of 4-20 mA. Serial connectivity on RS485 port with MODBUS RTU protocol.

• MFM 393

Mass Flow Computer
Request Quote

MFM 393 is micro-controller based arithmetical computation unit generally used in mass flow applications. Mass Flow Computer accepts three 4-20mA inputs at a time. MFM 393 displays instantaneous Mass Flow rate on 4 digit LED Display. Totaliser can be reset manually from password protected PROG menu. MFM 393 provides linear 4-20mA retransmission signal corresponding to Calculated Mass Flow Rate for other panel mounted instruments like recorders, controllers etc. Serial connectivity on RS485 port with MODBUS RTU protocol.

• NHM 393

Net Heat Meter
Request Quote

NHM-393 is a Net Heat Calculator specially developed for Centralized Air Conditioning Applications which is mainly used in Building Automation Systems. NHM-393 is a net heat calculator supplied with RTD Pt1000 Temperature Transmitters for accurate temperature sensing. 8 Digit Net Heat Totaliser is an important feature of NHM-393. This totaliser makes NHM-393 a reliable energy meter for the total net heat consumed. Real Time Clock is used to calculate the totaliser values very accurate.Most reliable 4-20mA loop is provided for easy installation of the NHM-393 anywhere in the plant which is powered by unit. NHM-393 calculates net heat consumed in chilled water air conditioning systems which supports all flow meters which will provided 4-20mA signal corresponding to volumetric flow rate. RS485 - MODBUS RTU protocol for serial communication is provided for energy management systems. Ideal for Building Automation Applications.
