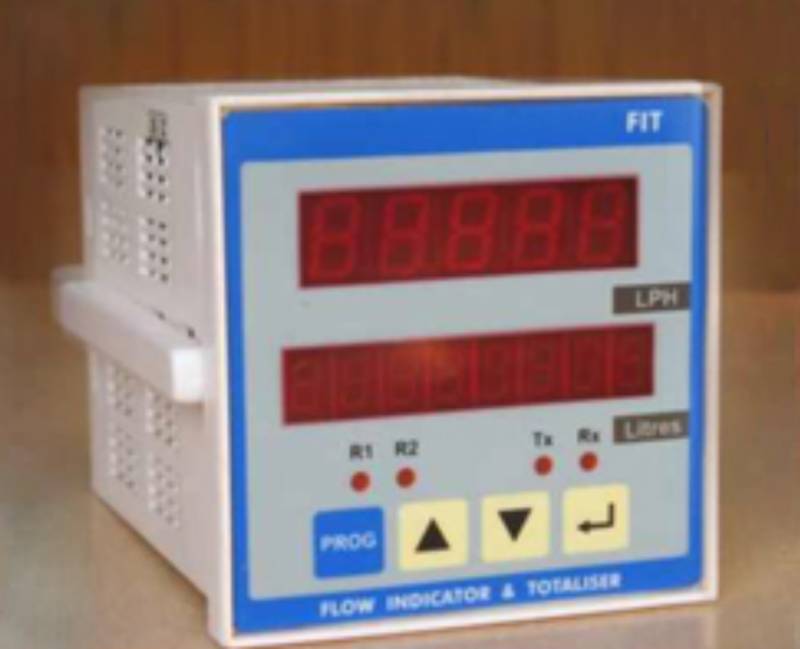

Flow Rate Indicator Totaliser - 96x96mm Front Bezel with mA /Pulse input
Flow Indicator Totalizer model FIT is having Dual functionality flow rate indication / 8 digit flow totalizing and Batch Counter mode with configurable flow rate range. Flow Indicator Totalizer is a panel mounted instrument with multi-functionality viz. Flow Rate indication, Flow Totalizing, batch counter & alarm for instantaneous flow. Flow Indicator Totaliser accepts 4 - 20 mA DC Linear or Pulse or Square root corresponding to flow rate,Factory set. Flow Transmitter can be DPT with orifice assembly, Rotameter, Magnetic Flowmeter etc. with output of 4-20 mA. Flow Indicator Totaliser incorporates two relays, from which one can be used for alarm for instantaneous flow & one for batch counter or both for alarm. There are two relay outputs which operate on flow rate and/or totaliser as per combination selected. Serial connectivity on RS485 port with MODBUS RTU protocol.
Flow Indicator Totaliser is used in many applications such as water treatment plants,sawage water treatment plants, effluent water treatment plants,food,chemical plants and water distribution.
|Input||4 - 20 mA DC Linear or Square root corresponding to flow rate, Factory set./Pulse (0.1 Hz to 10 Khz) corresponding to flow rate (Potential free input or open collector type - Pulse amplitude 5V / 12V / 24VDC factory set)|
|Display||7 Segment LED, 5 - Digit Flow rate, 8 - Digit Totalizer.|
|Excitation||24 VDC,100 mA excitation supply for external Flow Transmitter.|
|Relay Outputs Optional||True 4 - 20 mA re-transmission output for external indicators / recorders or PLC. Maximum load resistance 500 Ohms.|
|Remote Reset (Optional)||Remote Totalizer reset facility through potential free switch input.|
|Alarm Output (Optional)||Relay output for 2 set points on flow rate or one for flow rate and one for totaliser or Batching relay. (Refer to ordering info)|
|Serial Port (Optional)||RS485 port with MODBUS RTU protocol for on-line communication|
|Supply||230 VAC or 110 VAC, +10 %, Single Phase, 50 Hz. Factory set.|
|Cabinet||Panel mounting type. Bezel: 96 x 96mm (H x W)
Depth: 120 mm
Cutout: 92 x 92 mm (H x W)
