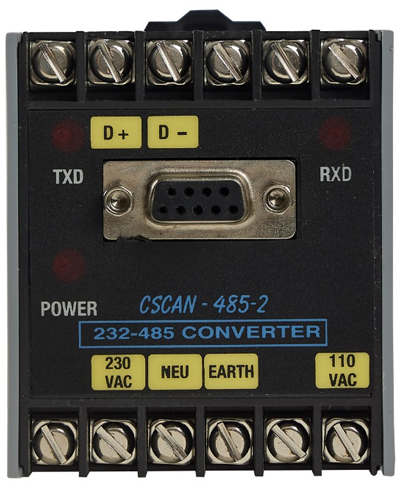

RS232-RS485 Converter

The CSCAN 485 is a RS 485 to RS 232C converter and vice-versa. The conversion is bi-directional. Both ports are optically isolated. We can give supply as 230VAC/110VAC or DC version 24V is available. RS 485 to RS 232C converter is used in application like interfacing field instrumentation with SCADA/PLC/DCS. RS 485 to RS 232C converter is used in many companies such as Sciemens Ltd, L&T Pvt Ltd, Jindal Steel & Power Ltd etc.which works in Auto mobile, Steel Industry, Automation and Project Industry.

Technical Specifications
Supply 230 VAC/110 VAC, +10 %, single Phase, 50 Hz,24VDC, +10 %, 1.8Wmax.
Input 2 wire RS485 (CSCAN485DC-2)
4 wire RS422 (CSCAN485DC)
OUTPUT RS 232C
BAUD RATE Autobaud selection from 300 to 115200 baud
ISOLATION 1000VDC Isolation between input and output.
TERMINATION RS485 / RS422 and supply connections on screw type. 9 pin D type female connector for RS232C.
Cabinet DIN rail mount,Size: 70 x 44 x 114 mm (HxWxD)
